ICU Ventilator

ICU Ventilator

400000 INR/Carton

Product Details:

  • Material Ventilator
  • Application ICU
  • Color Code White
  • Product Type ICU Ventilator
  • Suitable For Adult & Pediatric
  • Supply Ability : 7 Kilograms Per Day
  • Click to view more
X

Price And Quantity

  • 1 Kilograms
  • 400000 INR/Carton

Product Specifications

  • Ventilator
  • ICU
  • White
  • ICU Ventilator
  • Adult & Pediatric

Trade Information

  • Mumbai
  • Letter of Credit at Sight (Sight L/C), Cheque, Cash in Advance (CID), Cash Advance (CA)
  • 7 Kilograms Per Day
  • 15 Days
  • If order is confirmed we will reimburse the sample cost
  • self packaging
  • Africa, Middle East, Asia
  • All India

Product Description

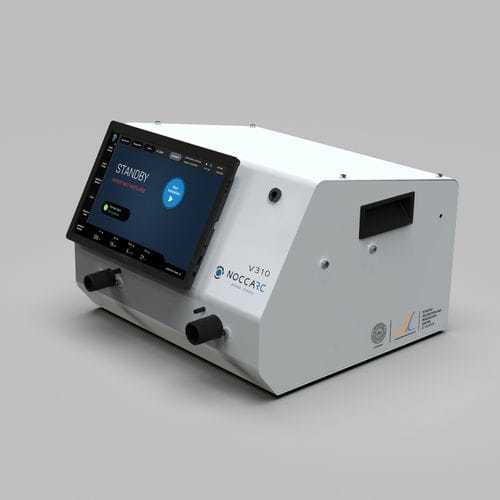

NOCCARC V310 Ventilator Introduction

Carefully crafted with the combination of cutting edge research and advanced manufacturing technologies, the turbine based design enables highly efficient independent operation and a wide range of ventilation modes, including High Flow Nasal Cannula.

The IOT enabled system allows central data monitoring and logging remotely making Noccarc V310  a much safer and easy to manage option for the health professionals in the current case of Covid-19 pandemic.

Modes of Ventilation
  • Non-Invasive Modes: CPAP with Apnea backup Ventilation, Duo-Vent
  • O2 Therapy: High Flow Nasal Cannula (HFNC mode)*

HENCE accessories are not included with the ventilator and have to be ordered separately

Technical Specification

Respiratory Rate (RR)

1-60 BPM

Peak Inspiratory Pressure

50 cm H2O

PEEP

0 to 50 cm H2O

Pressure Support

0 to 50 cm H2O

Inspiratory Time

0.2 - 5s

Tidal Volume

50 - 2000 ml

Inspiratory Flow Rate

280 LPM (Internally restricted to 160 LPM)

Inspiratory Hold

Yes

Expiratory Hold

Yes

I:E Ratio

1:6 to 6:1

Trigger Flow Sensitivity

1 LPM - 20 LPM

Volume Accuracy

2-3 % of the full scale between 10 LPM - 80 LPM

Leak Detection and Compensation

up to 200 ml

O2 Concentration (FiO2)

21-100%

FiO2 Control

Closed loop electronic manipulation

O2 Therapy

Continuous flow 0 - 80 L/min
Concentration 21 - 100 %

Dimensions Patient Unit

395 X 340 X 255 mm

Weight

10.1 Kg Patient Unit
25 Kg with trolley

Oxygen Input Pressure

45 - 60 PSIG

Battery Type

Lithium, Internal

Battery Backup time

up to 8 hours

Mains Input

200-240VAC, 50-60 Hz

Input current

< 2.00A

Power Consumption

< 150W
